Nitinol

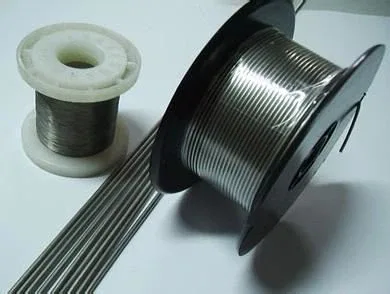

Description of Super-Elastic Nitinol Wire Wire dia:0.1~3mm Type:hardened Tensile Strength: 1245MPa Application:Commonly used for eyeglass frames, fishing wires,paragliders and antennas etc. Feature:Super-Elastic Nitinol Wire bounces back to its original shape after bending, stretching, and...

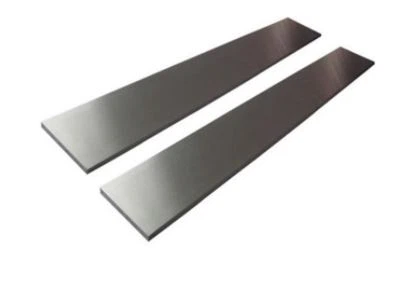

Thickness: 0.1 mm Tolerance:±0.01mm Property : super-elastic State: annealing AF: 0℃ Application: dental Advantage: very good superelasticity

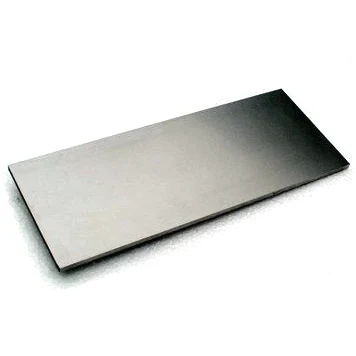

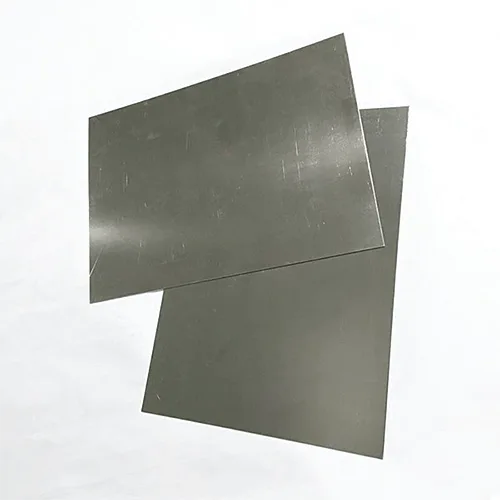

Details of nitinol sheet Item name:Niti sheet Ni content:55.8% Standard:ASTM F2063 Type of nitinol sheet:superelastic Finish:oxide free AF:10±5℃ Condition:straight annealed What are the properties of nitinol sheets? Nitinol sheet has many excellent characteristics, such as biocompatibility, ray...

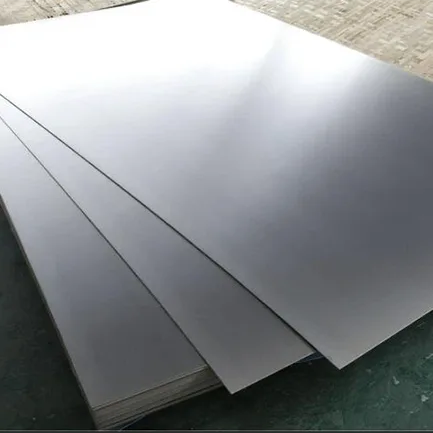

Details of nitinol sheet foil Vailable thickness of nitinol sheet or foil:0.03~5mm Vailable width of nitinol sheet or foil:5~250mm in stock, if other sizes can be customized Vailable length of nitinol sheet or foil:Depends on your needs and also the thickness About surface finish:oxide black(special request), polished, cold rolled bright, pickled Application:nitinol sheet can be used to make complex medical device components and also some other parts in industry or other fields.

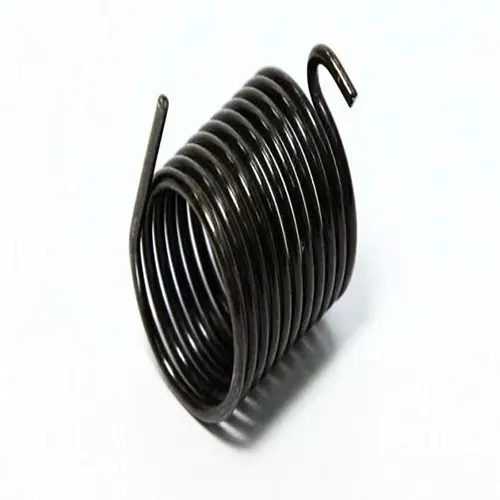

Details of nitinol shape memory spring How does nitinol shape memory spring react?

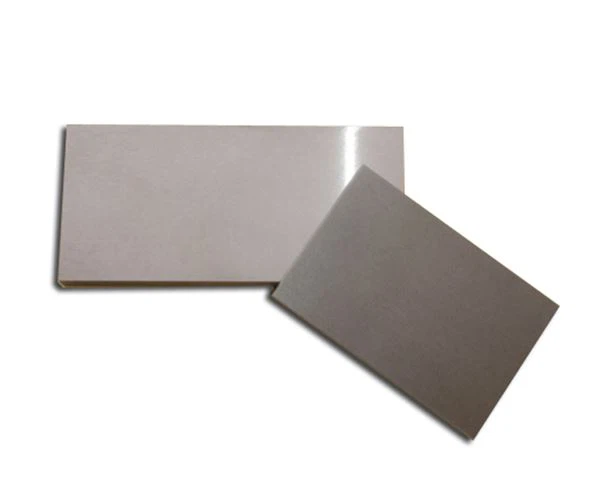

Thick:0.1~0.5mm Width:＜300mm L:1000mm, according to customers' needs AF:0~15℃， other temperatures also available State:flat annealed Type1:superelastic medical nitinol sheet Type2:shape memory medical nitinol sheet Surface finishes:1.Oxide 2.Polished 3.Etched 4.Flat ground

Type:Superelastic AF:0~10℃ Size available in warehouse:0.1mm,0.15mm,0.2mm,0.25mm 0.3mm,0.35mm,0.4mm,0.5mm etc... Product name:nitinol sheet foil Application:for dental and also have some for making different shapes of medical device.

Type: superelasticSize:0.4~0.5mm, other size availableshape:round wireSurface:brightSample:availableTensile strength data of nitinol guide wire:will be providedElongation of nitinol guide wire:will be tested​3-point bending test:available

Introduction of medical nitinol tube 5mm OD Size of medical nitinol tube:0.3~20mm OD tolerance:±0.01mm WT:0.05~2mm, according to OD size WT tolerance:according to OD and thickness L:according to OD and thickness L tolerance:±1 and according to the length Surface finish:polished or ground Inside...

Details of Superelastic nitinol wire for jewelry Size:0.2~2mm Type:superelastic Feature:very flexible Surface:polished Stock:with different sizes Tensile strength:1400 MPa What is superelastic nitinol wire? Superelastic nitinol wire bounces back to its original shape after bending, stretching,...

Details of cold rolled superelastic nitinol wire for paragliders Product Name: cold rolled superelastic nitinol wire for paragliders Material:Nitinol (Nickel Titanium Alloy) Sizes:0.5mm, 0.6mm, 0.8mm,1.0mm, 1.5mm,etc Surface Finish: Polished Why nitinol wires are ideal material for paragliders?...

Introduction of flexinol wire Composition:nickel-titanium alloy Other name:actuator wire or muscle wire What is flexinol wire? Flexinol wire also called actuator wire,it's made of nickle and titanium, some times other elements are added for certain properties. This kind of nitinol wires...
